Transient Conduction in Sphere:

Single Term Approximation

M.M. Yovanovich

DFSPH1TERM.MWS

One-dimensional transient conduction in solid sphere of radius . Single term approximation.

The single term approximation is applicable for all values of the Biot number provided the dimensionless time is greater than .

The single term approximations have the forms:

and

where where the Fourier temperature and heat loss fraction coefficients are found from and . The first root of the characteristic equation are obtained from the approximation and the parameter . For cooling the dimensionless temperature is defined as , and , , and .

> restart:

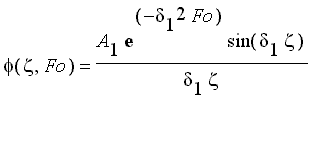

Dimensionless temperature.

> phi:= A[1]*exp(-delta[1]^2*Fo)*sin(delta[1]*zeta)/(delta[1]*zeta);

Heat loss fraction.

> Q_Qi:= 1-B[1]*exp(-delta[1]^2*Fo);

Fourier coefficients for temperature and heat loss fraction.

> A[1]:= 2*(sin(delta[1]) - delta[1]*cos(delta[1]))/(delta[1]-sin(delta[1])*cos(delta[1]));

> B[1]:= 6*Bi^2/(delta[1]^2*(delta[1]^2+Bi^2-Bi));

First root of characteristic equation.

> delta[1]:= Pi/(1+ (Pi/sqrt(3*Bi))^n)^(1/n);

> n:= 2.314;

Dimensionless system parameters.

> pars:= [Bi = h*a/k, Fo=alpha*t/a^2];

Example 1.

> case1:= (a=20/1000, k = 20, h = 100, alpha=20e-6, t = 6);

Calculation of system dimensionless parameters.

> parsvals:= subs(case1, pars);

Dimensionless temperature distribution.

> phi1:= evalf(subs(pars, case1, phi));

Calculation of heat loss fraction.

> Q_Qi1:= evalf(subs(pars, case1, Q_Qi));

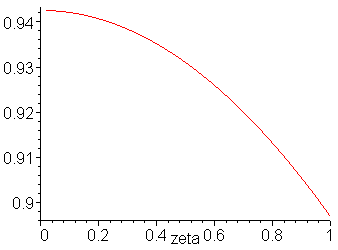

> plot(phi1, zeta=0..1);

>
