ME 303 Project 2 Solution

M.M. Yovanovich

PROJ2S99SOL.MWS

Project 2 Solution.

The complete solution of the problem of Project 2.

The Maple worksheet follows closely the procedure one would use to get the solution by paper and pencil.

> restart:

System parameter values.

> syspar:= (D=5/1000, L=100/1000, k=80, S=2e6, TL=70, Tinfty=20, alpha=12e-6);

> assume(S>0, k>0, alpha>0):

Nonhomogeneous PDE.

> PDE:= diff(theta(x,t),x$2)+ S/k - 1/alpha*diff(theta(x,t),t) = 0;

Separation of nonhomogeneous PDE into nonhomgeneous ODE and homogeneous PDE.

> theta(x,t):= v(x) + w(x,t);

> PDE2:= PDE;

Steady-state solution.

> ode:= diff(v(x),x$2) + S/k=0;

> solode:= dsolve(ode, v(x));

> bc1:= simplify(subs(x=0, diff(rhs(solode),x)))=0;

> bc2:=subs(x=L, rhs(solode)) = thetaL;

> consts:= solve({bc1,bc2},{_C1,_C2});

> assign(consts):

> expand(solode);

Solution of homogeneous PDE.

> PDE2:= diff(w(x,t),x$2) -1/alpha*diff(w(x,t),t) = 0;

Separation of Variables Method.

> w(x,t):= X(x)*T(t);

> PDE3:= expand(PDE2/w(x,t));

Solution of separated spatial ODE.

> odeX:= diff(X(x),x$2) + lambda^2*X(x) = 0;

> assume(lambda>0):

> solodeX:= dsolve(odeX, X(x));

> bc0:= simplify(subs(x=0, diff(rhs(solodeX),x)))=0;

> _C4:= 0;

> solodeX;

> subs(x=L, rhs(solodeX)) = 0;

Since the constant of integration cannot be set to zero (this gives a trivial solution), we must set . This relation gives us the eigenvalues , for all positive integers.

> lambdan:=(2*n-1)*Pi/(2*L);

The spatial solution consists of cosines.

Solution of the time ODE.

> odeT:= diff(T(t),t) + lambda^2*alpha*T(t)=0;

> solodeT:= dsolve(odeT, T(t));

Auxiliary transient solution.

> w:= C*exp(-lambda^2*alpha*t)*cos(lambda*x);

Fourier coefficients for temperature are based on the initial condition.

> v:= expand(rhs(solode));

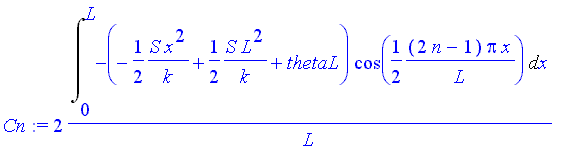

> Cn:= 2/L*Int(-v*cos(lambdan*x),x=0..L);

> thetaL:= TL-Tinfty;

Fourier Coefficients for Temperature.

> Cn:= expand(value(Cn));

Remove and set

> Cn:= subs(sin(n*Pi)=0, cos(n*Pi)=(-1)^n, Cn);

Compute the first two Fourier coefficients.

> C1:= subs(syspar, n=1, Cn): evalf(%);

> C2:= subs(syspar, n=2, Cn): evalf(%);

General Expression for Fourier coefficients for Temperature.

The above expression can be put into a simpler form by collecting common terms. It can be written as

> C[n]:= (16*(-1)^n)/((2*n-1)^3*Pi)*((S*L^2)/(Pi^2*k) + (T[L]-T[infinity])*(n^2-n+1/4));

Fourier coefficients for instantaneous heat flow rate through boundary at .

> En:= expand(-lambdan*Cn*sin(lambdan*L));

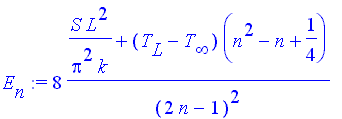

The above expression for can be simplified by noting that . Collecting common terms with common factors simplifies the relation greatly. It can be written as
